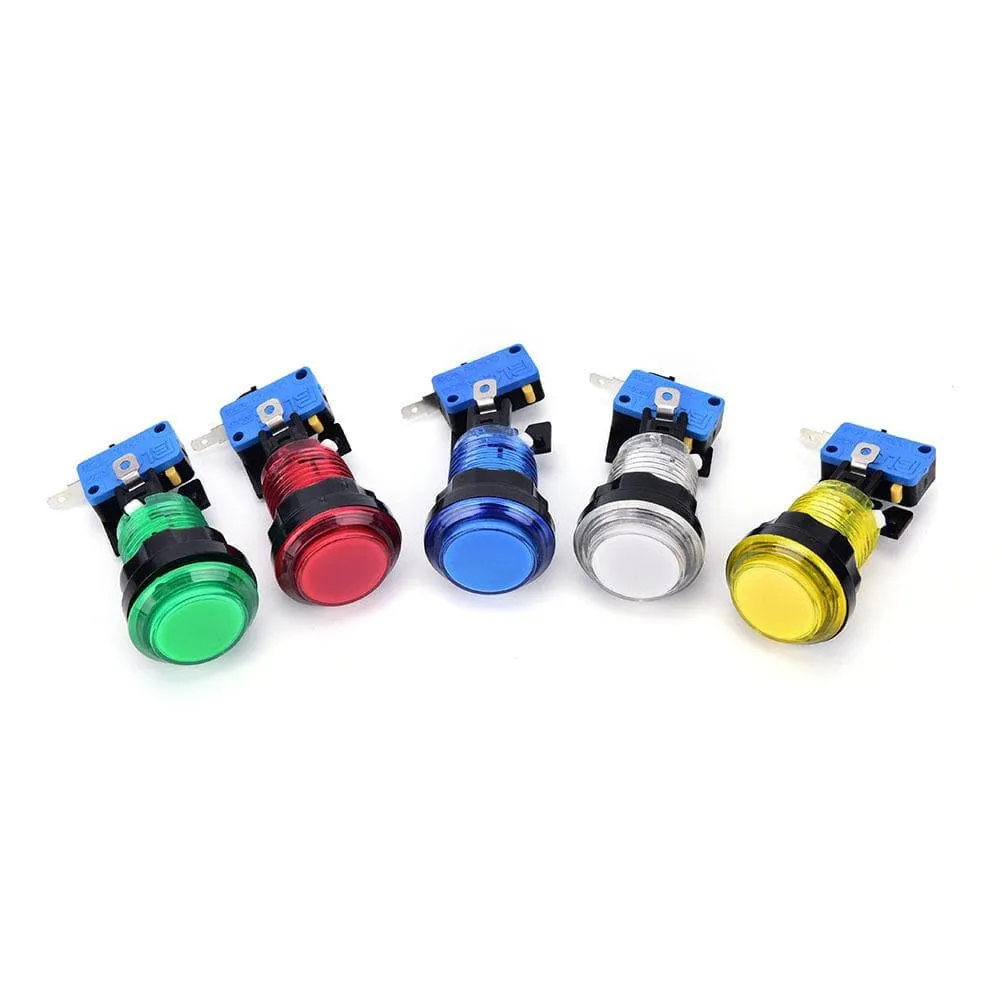

Clear Illuminated Arcade Button
Illuminated Arcade Button features a translucent body and is available in a choice of colors.
Used for various commercial and academic projects or for use in arcade machine projects. Each Illuminated Arcade button comes complete with fixing ring, spacer and bulb holder and mounts in a 24mm to 28mm mounting hole.
Shine up your control panel with some illuminated arcade buttons!
Features:
- Ideal for various commercial and academic projects
- Lens cap can be removed to insert your own artwork or writing
- A range of compatible Microswitches and LEDs are available to purchase separately
- Perfect for use in any JAMMA arcade machine or MAME / 60 in 1 arcade machine
- Looks great plain, fantastic when illuminated
- LED & lamp holder

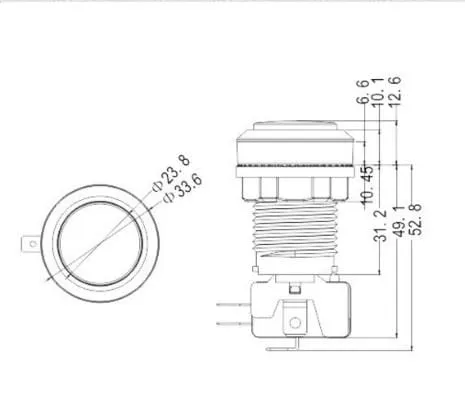

Product Dimensions:
- Mounting hole required: 24mm - 28mm
- Overall diameter of button across plunger: 32mm
- Total height of button: 44mm
- 1 x Translucent Arcade Button
- 1 x Fixing Ring
- 1 x Spacer
- 1 x Bulb holder
- 1 x Microswitch
Wiring Information:
These buttons require crimped wires for Microswitch Connection (Microswitches sold separately)
1 wire for ground connection (CO) and 1 wire for signal connection (NO).
These buttons require 6.3 mm crimped wires for connecting to the terminals on the bulb holder if you plan on using LEDs (LEDs sold separately).
1 wire for the positive connection and 1 wire for the negative connection
Pre-crimped wires and daisy chain ground harness can be ordered.
