HAPP-STYLE STANDARD BUTTONS

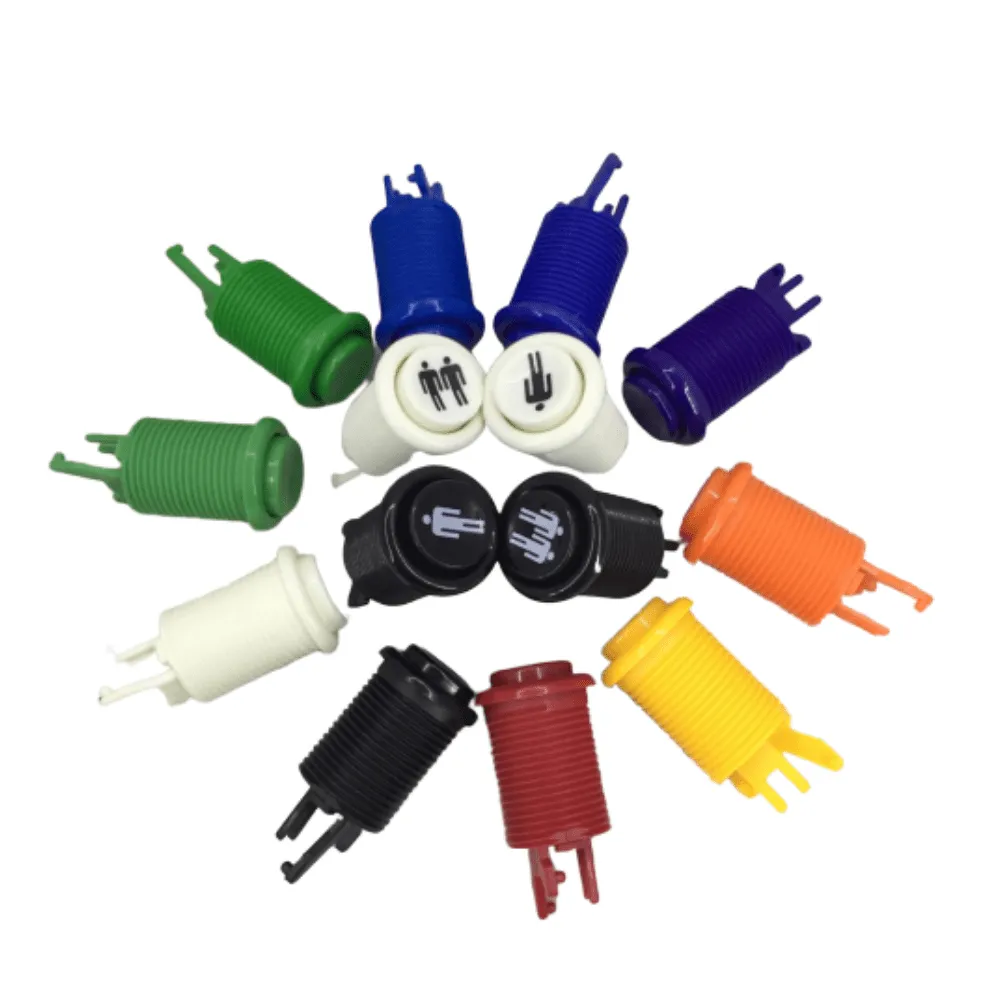

This Standard Arcade Button is made from durable Nylon material and suitable for metal or wood control panels. It is 32mm in diameter, features a convex plunger and will require a 28mm mounting hole.

Features:

• Mounts in a 28mm mounting hole
• Durable nylon material
• Mounts into wood or metal control panels
• Convex plunger design

Buttons include:

• 1 x Happ-Style Standard Arcade Button
• 1 x Fixing ring
• 1 x Microswitch

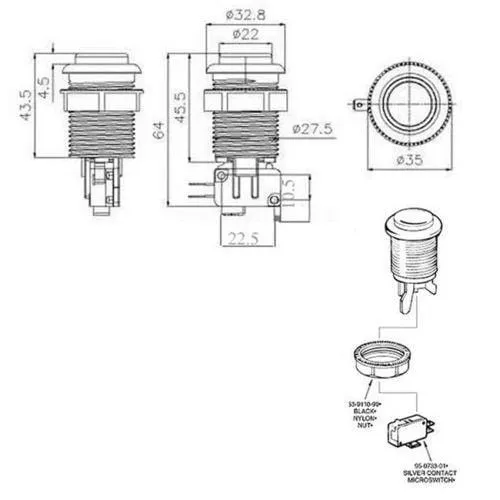

 Size:

• Mounting hole required: 28mm
• Overall diameter of button across plunger: 35mm
• Maximum depth of button from top of plunger to bottom: 64mm

Wiring Information:
This button requires crimped wires for Microswitch Connection (Microswitches sold separately)
1 wire for ground connection (CO) and 1 wire for signal connection (NO).

Please Note:
This is available to order as "Button only" (No Microswitch) OR "With Standard Microswitch"
If alternative switches are required, these can be ordered separately.
