Illuminated Player Arcade Button (White)

Give your arcade project the wow factor with this translucent, Illuminated Player 2 Arcade button.

If you decide to illuminate the LED supplied with this Arcade Button, you will need a 12V Power Supply. This can be taken from a Spare Molex Connector (yellow wire) on a PC Power Supply or a JAMMA PSU. This button will mount in a 24mm to 28mm hole.

Shine up your control panel with some Illuminated Arcade Buttons!

Features:

• This item is LED Push Button Start Player Button for arcade game.
• The buttons are made of high quality material, not easy aging, very durable.
• High reliability and long life, can be used for more than 1,000,000 cycle times.
• You can use them to DIY your project and you can also use it to replace your button in the machine.
• Each button will come with the Micro Switch, you can use it directly when you get the item.
• Compatible with Raspberry Pi Retropie Arcade DIY Projects ,Raspberry Pi 2 Retropie Arcade DIY Projects ,MAME DIY Projects ,USB MAME Cabinet Arcade DIY Projects ,Video Games Projects & Fight Stick etc.

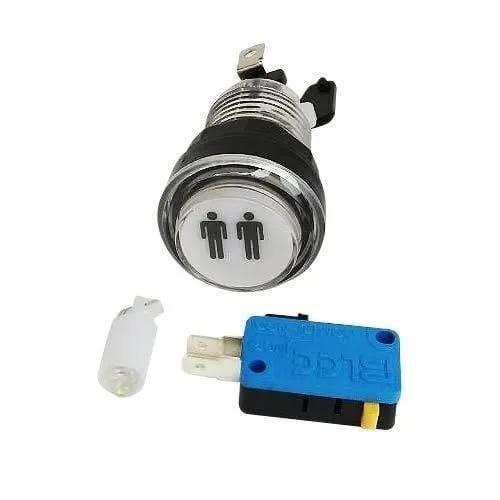

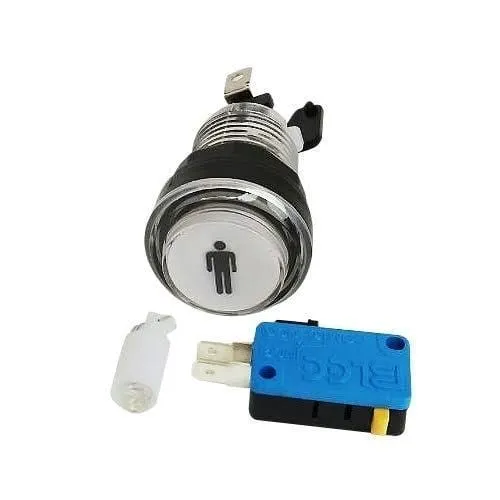

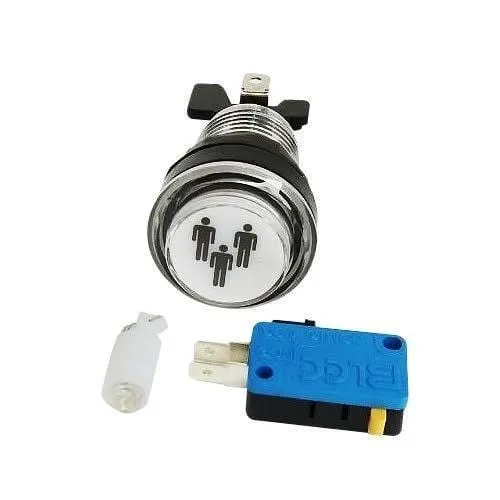

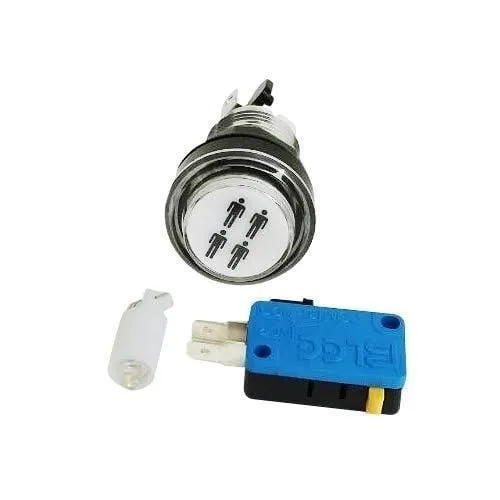

What’s Included:

• 1 x LED Illuminated Push Button
• 1 x Fixing ring
• 1 x 12V LED Lamp
• 1 x Bulb holder
• 1 x Microswitch

Product Dimensions:

• Mounting hole required: 24mm - 28mm
• Overall diameter of button across plunger: 33mm
• Maximum depth of button from top of plunger to bottom of Microswitch: 65mm

Wiring Information:
These buttons require 4.8mm crimped wires for connection.
1 wire for ground connection (CO) and 1 wire for signal connection (NO).
These buttons require 6.3mm crimped wires for illuminating.
1 wire for the positive connection and 1 wire for the negative connection
